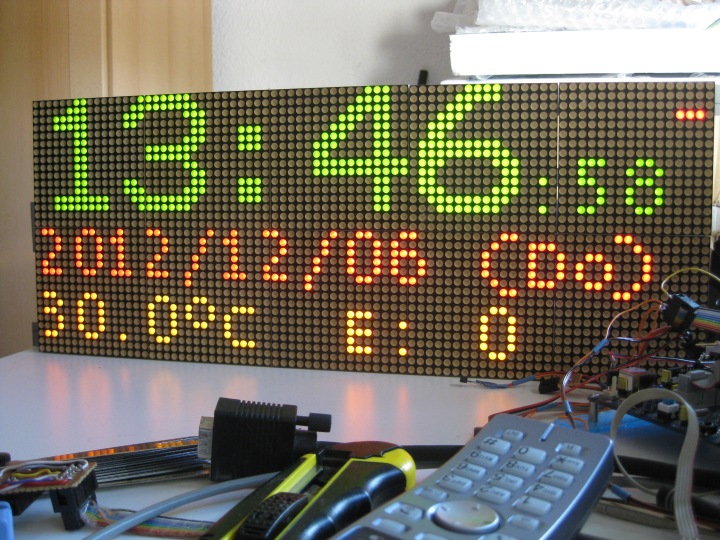

First testrun with 5 modules and the stm32:
The 2nd batch of modules has arrived:

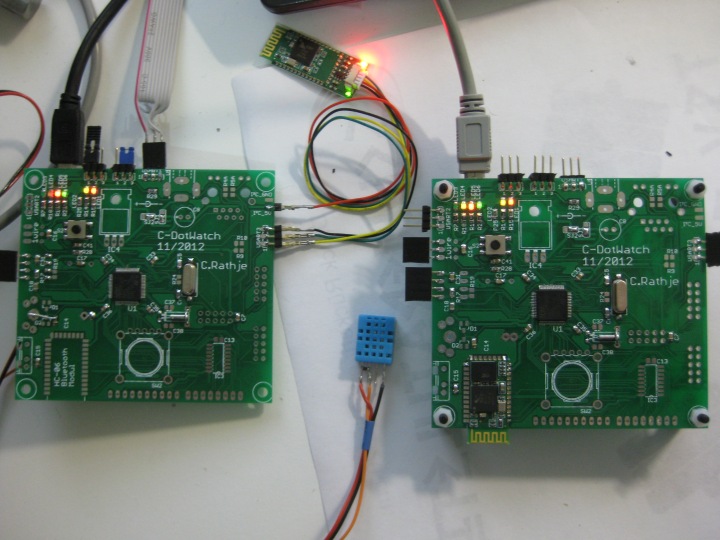

The pcbs have arrived:
Whats on the list:
- STM32F103RBT6: 128 KB Flash Memory, 20KB Static RAM, 72MHz, RTC, 2 SPI, I²C, 3 USART, USB
- Powered by external power supply (5V or >7V) or USB ✔
- CR2032 battery backup ✔
- Micro SD-Card ✔
- ENC28J60 based Ethernet ✔
- Bluetooth with HC05/HC06 modules ✔
- Infrared receiver with TSOP1738/31238 ✔
- 1wire bus ✔ with DS18B20 on board ✗
- DHT1 humdity sensor interface ✔
- DCF77 receiver interface ✔
- Interface for up to 16 Samsung SLM1606M LED matrices ✔
- PANASONIC EVEQDBRL416B rotary encoder for manual input ✔
- Buzzer and LED ✔ for status
